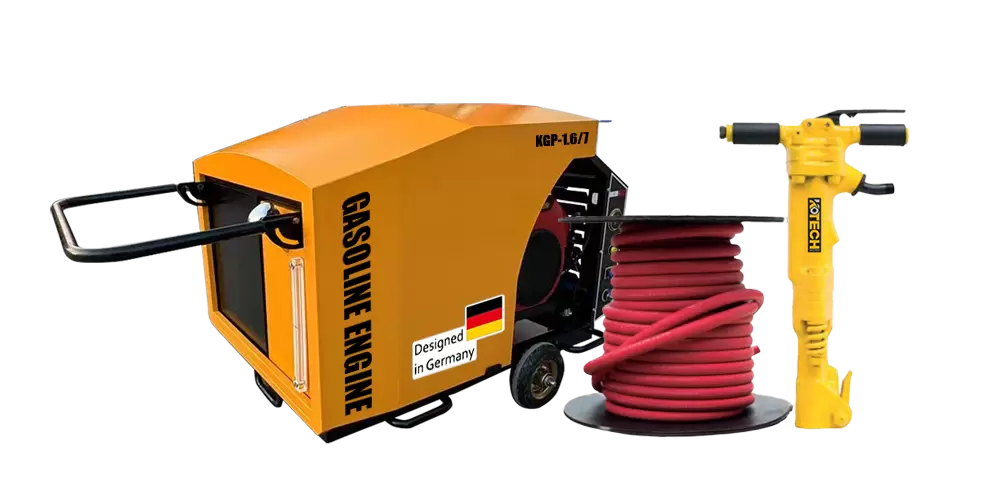

KGP Series – Portable Gasoline Air Compressor Advantages:
|
 |
Petrol engine with electric starter
The compact engine is equipped with the environmentally friendly Honda petrol engine, which complies with the EU Stage V emissions standard. Convenient one-touch starting ensures that the compressor is always ready for immediate operation, and a large 20-litre fuel tank allows for long refuelling intervals.
Polyethylene housing available in special colours
The PE housing is available in the following special colours.
Blue – corresponds to RAL 5017, red – corresponds to RAL 3020, orange – corresponds to RAL 2009, white – corresponds to RAL 9010, green corresponds to RAL 6024 Other housing colours are available as chargeable options.
Aftercooler
Compact models can be operated with an external condensate treatment system. The racks are delivered ready for connection and are equipped with aftercoolers and condensate separators to provide cool, condensate-free compressed air. In addition, a combination of filters is available for supplying compressed air that is technically oil-free.
Product Showcase:
| Model | Compressor | Petrol engine | Complete system | ||||||||||
| Flow rate | Working pressure | Make | Mode | Rated
engine power |
Speed at
full load |
Fuel tank
capacity |
Operating
weight |
Sound
power level*) |
Sound
pressure level**) |
Compressed
air outlet***) |
|||
| m3/min | cfm | bar | PSI | kW | rpm | l | kg | dB(A) | dB(A) | ||||
| KGP-1.6/7 | 1.6 | 57 | 7 | 100 | Honda | GX 630 | 15.5 | 2500 | 20 | 202 | ≤97 | 76 | 1 × G½ |
| KGP-1/10 | 1.0 | 35 | 10 | 145 | |||||||||
| KGP-0.9/15 | 0.9 | 30 | 15 | 215 | |||||||||
| KGP-1.6/7 | 1.6 | 57 | 7 | 100 | Honda | GX 630 | 15.5 | 3300 | 20 | 204 | Only for export outside the EU | 1 × G½ | |
| KGP-0.9/15 | 0.9 | 35 | 15 | 215 | 2300 | ≤97 | 76 | ||||||
Even the smallest air compressor, the KGP series small gasoline air compressor motor compressor for sandblasting, shovels, demolition hammers, drills, saws, screwdrivers, sanders, air guns or robot cutters.
Pneumatic drills are ideal for installing underground pipes and cables as well as for sealing tests.
